DBH8F 8-Pin Subsea Ethernet Connector — Bulkhead Female, 300 Bar, Gigabit Ethernet

DBH8F — 8-Pin Ethernet Subsea Connector Overview

The DBH8F is a 8-pin Bulkhead Female subsea connector purpose-built for demanding underwater systems operating at depths to 3,000 m (300 Bar). It transmits 1000Base-T Gigabit Ethernet (IEEE 802.3ab) through a fully sealed, vulcanized neoprene overmold body that is pressure-tested before every shipment. Designed as a drop-in-compatible component for professional ROV, AUV, cabled observatory, and deep-sea instrumentation programs worldwide.

Unlike commercial-grade connectors that degrade rapidly in saline environments, every DBH8F is manufactured with gold-plated copper alloy contacts, a chemically bonded neoprene overmold, and multi-point sealing geometry that eliminates micro-gap flooding — the primary failure mode in lesser designs.

Key Design Features

• Bulkhead Female configuration — clean bulkhead panel penetration for chassis integration
• 8-pin layout optimized for IEEE 802.3ab 1000Base-T Gigabit Ethernet — all 4 differential pairs fully supported
• 300 Bar (4,350 psi) pressure rating — independently verified by 100% hydrostatic testing before shipment
• Vulcanized neoprene overmold — molecular bond to connector body, no adhesive interfaces, rated for continuous immersion beyond 10 years
• Gold-plated copper alloy contacts — < 5 mΩ contact resistance, immune to chloride corrosion at full ocean salinity
• Industry-standard mating interface — compatible with all DBH8x and DIL8x family connectors
• Keyed anti-rotation body — prevents mis-mating and protects gold contacts during deployment operations
• No minimum order quantity — available from 1 unit, standard 1–2 week lead time

Electrical & Mechanical Specifications

Typical Applications

• ROV control system ethernet backbone and tether terminations
• Cabled underwater observatory (CUO) node-to-node data links
• AUV docking station high-speed data interfaces
• Subsea junction box ethernet distribution ports
• Offshore platform underwater sensor network nodes
• Deep-sea glider and profiler ethernet payload connections
• Remotely operated tool (ROT) data and control links
• Subsea camera system streaming data interfaces

Why the DBH8F Outperforms Generic Subsea Connectors

1. Direct-Bond Vulcanized Neoprene Overmold

The neoprene is vulcanized directly onto the connector body under heat and pressure, creating a molecular bond with zero adhesive interfaces. Adhesive-based seals — common in lower-cost connectors — creep, delaminate, and admit water within months of sustained deep-sea pressure cycling. The DBH8F's overmold maintains integrity across thousands of pressure cycles without maintenance.

2. 100% Pre-Shipment Hydrostatic Pressure Testing

Every unit is individually hydrostatically tested to rated depth before shipment — not batch sampled, not statistically inferred. This eliminates latent seal defects that would otherwise only reveal themselves after expensive subsea deployment.

3. Gold-Plated Contacts for Corrosion-Free Signal Integrity

Gold plating on copper alloy contacts provides a thermodynamically stable interface that resists chloride-induced corrosion even after years of continuous saltwater exposure. Contact resistance remains below 5 mΩ per pin throughout the connector's service life, preserving full Gigabit Ethernet link performance.

4. Industry-Standard Mating Interface

The DBH8F mates with all other connectors in the 8-Pin Ethernet family, enabling system designers to mix bulkhead and in-line terminations without custom adapters. This interoperability reduces spare parts inventory and simplifies field servicing.

5. No Minimum Order Quantity

Available from single-unit quantities with standard 1–2 week lead time. Suitable for prototype programs, research vessel outfitting, and production deployments alike.

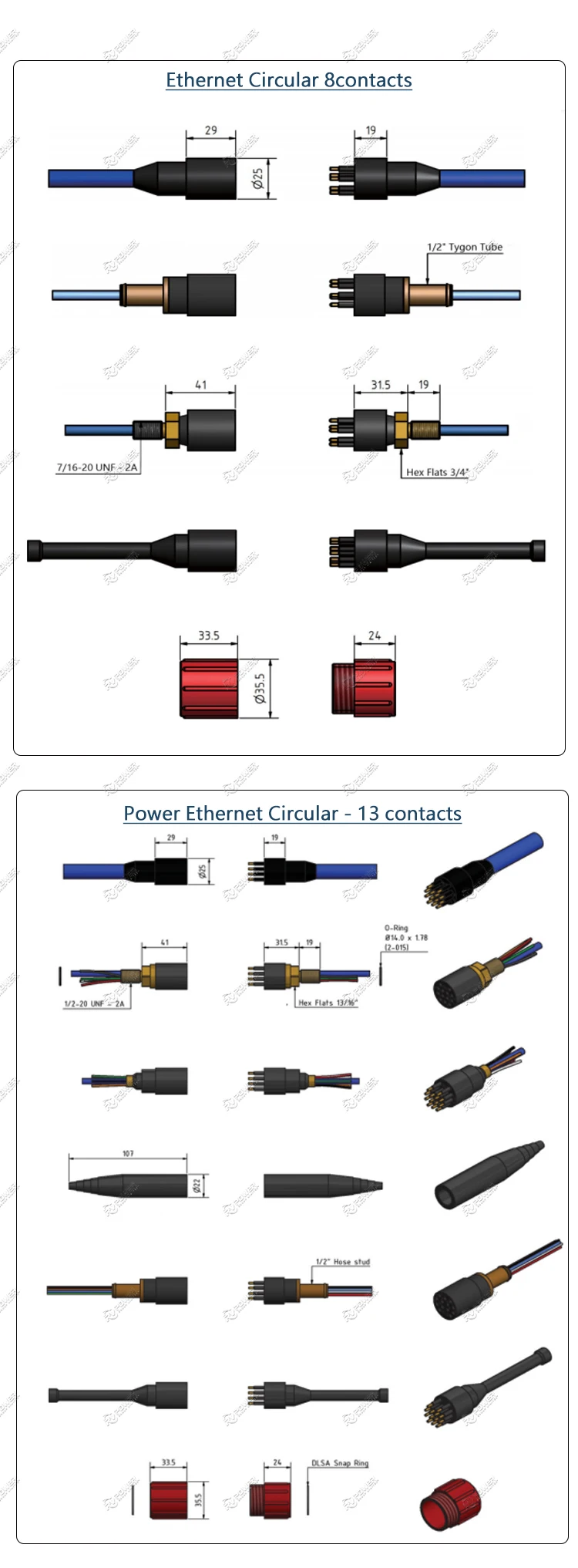

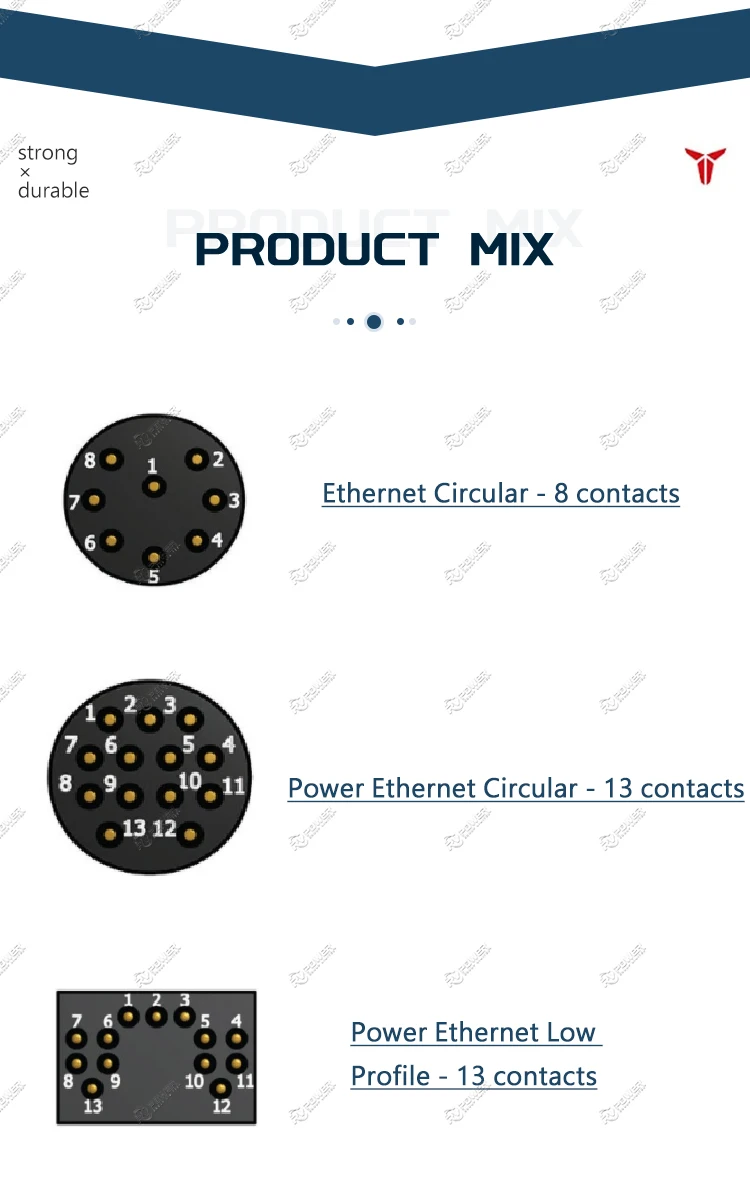

Complete Connector Family

The DBH8F is part of a fully interoperable connector family. All variants share the same mating face, enabling flexible system architectures with standardized components:

Installation and Handling Guidelines

Mating Procedure

• Inspect both connector faces for debris or damage before mating — even minor contamination on gold contacts can elevate contact resistance.
• Align the keying features before applying axial force. Never rotate a partially mated connector under load.
• Apply firm, steady axial pressure until the locking mechanism engages with an audible click. Do not use tools to force engagement.
• Verify mating depth visually or with a depth gauge before pressurizing the system.

Storage and Handling

• Store unmated connectors with protective dust caps installed to prevent contact contamination.
• Avoid exposure to UV radiation, ozone, and hydrocarbon solvents — all degrade neoprene overmold integrity over time.
• Do not exceed the connector's rated bend radius on attached cables during handling or deployment.
• Flush with fresh water after recovery from saltwater — particularly the contact face — to remove chloride deposits before next deployment.

Inspection Intervals

• Inspect contact surfaces and overmold integrity after every 50 mate/demate cycles or annually, whichever comes first.
• Replace if contact plating shows wear spots, if the overmold exhibits cracking or delamination, or if insulation resistance drops below 100 MΩ.
